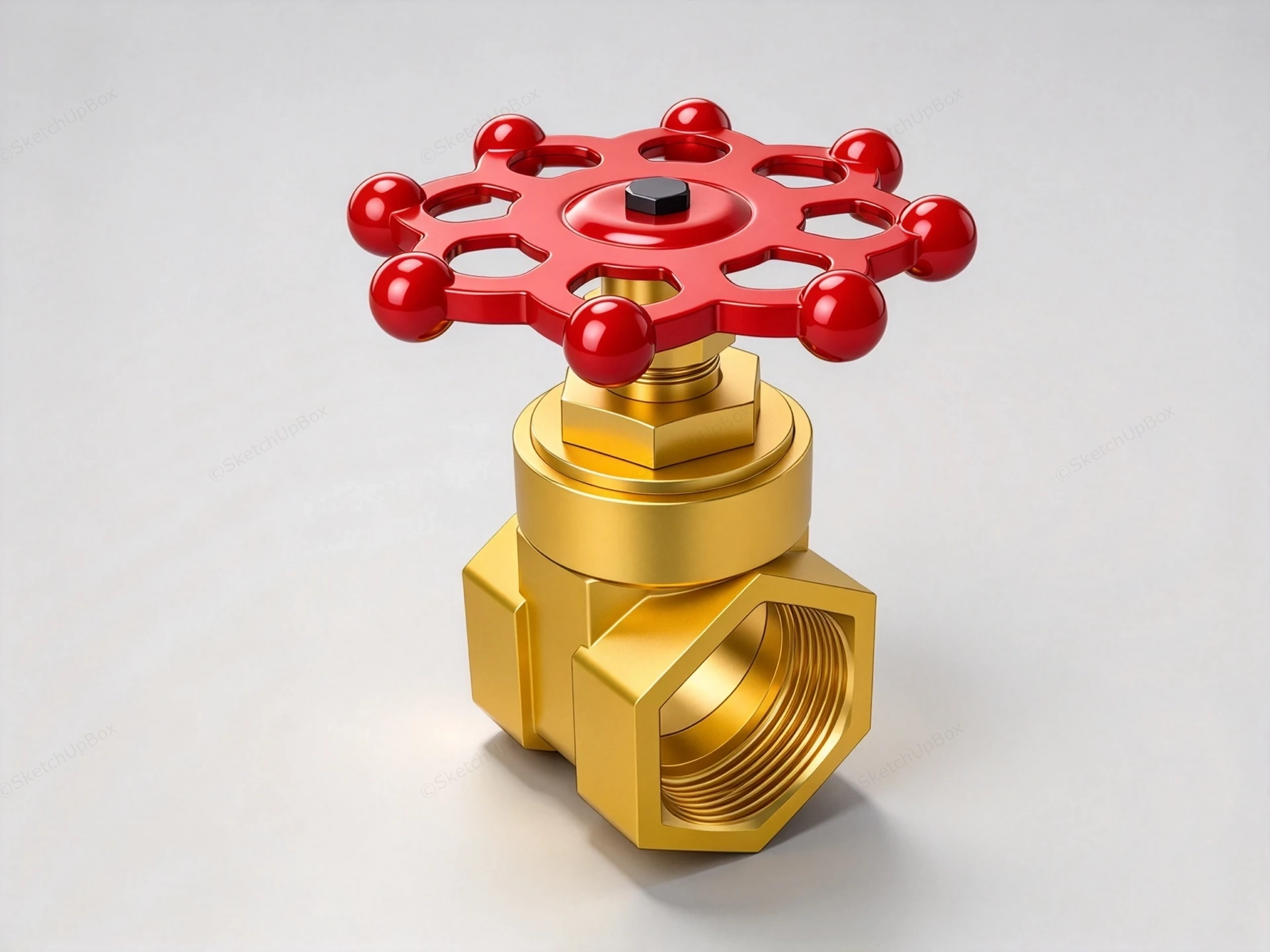

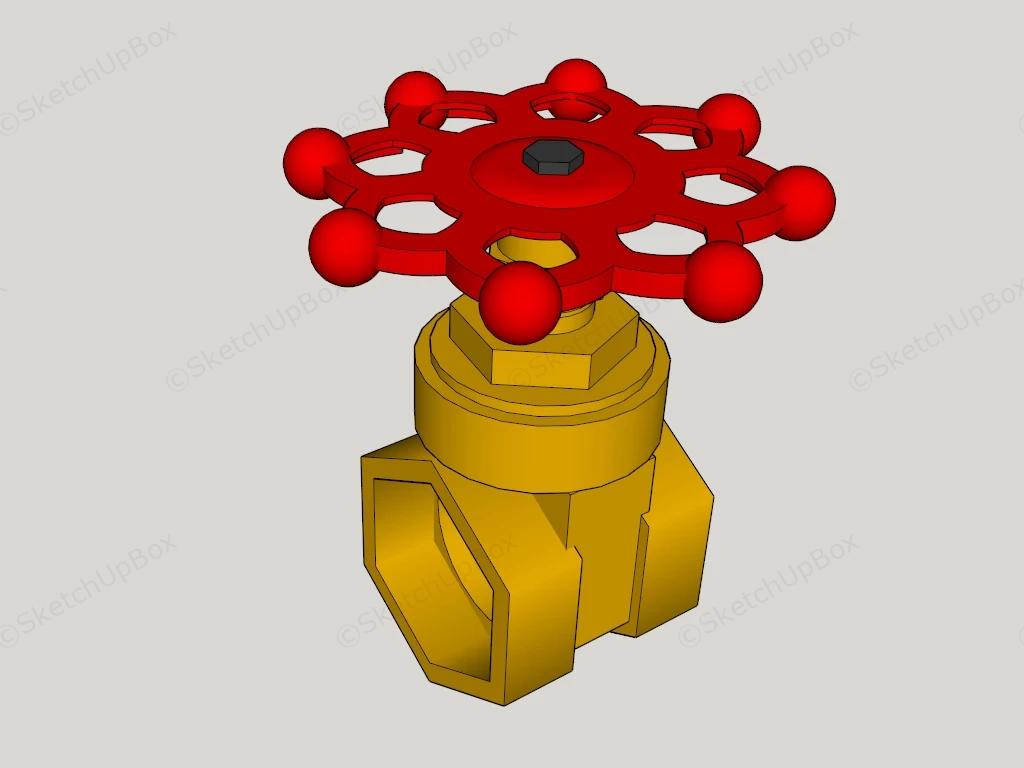

Threaded brass gate valve SketchUp 3D model, featuring a gold-tone brass body and a striking red multi-lobed handwheel. Such valves are commonly used in plumbing and industrial systems to control the flow of fluids in pipes.
This asset features a detailed mechanical brass gate valve with a red multi-spoke handwheel and threaded interior connections. Designed for MEP (Mechanical, Electrical, and Plumbing) architectural visualization, industrial loft interior projects, and utility room scenes, it provides realistic hardware detailing for technical environments. The standardized industrial design allows effortless integration into piping infrastructure, mechanical plant rooms, or exposed-pipe retail concepts.
Included Components
- Main Structural Body: Machined brass valve housing featuring dual internal pipe threads and exterior hexagonal wrench flats.
- Stem & Bonnet Assembly: Threaded brass stem with hexagonal gland nut and central top bolt fastener.
- Control Handwheel: Spoked red painted handle equipped with integrated spherical rim grips.
Rendering & Workflow Compatibility
Constructed with an efficient geometry count of 3,877 polygons, this model maintains clean viewport responsiveness while preserving sharp detail for high-resolution renders. The file is saved with native compatibility for SketchUp 8 (SU8) and higher, ensuring seamless integration across legacy and modern ArchViz rendering pipelines.
