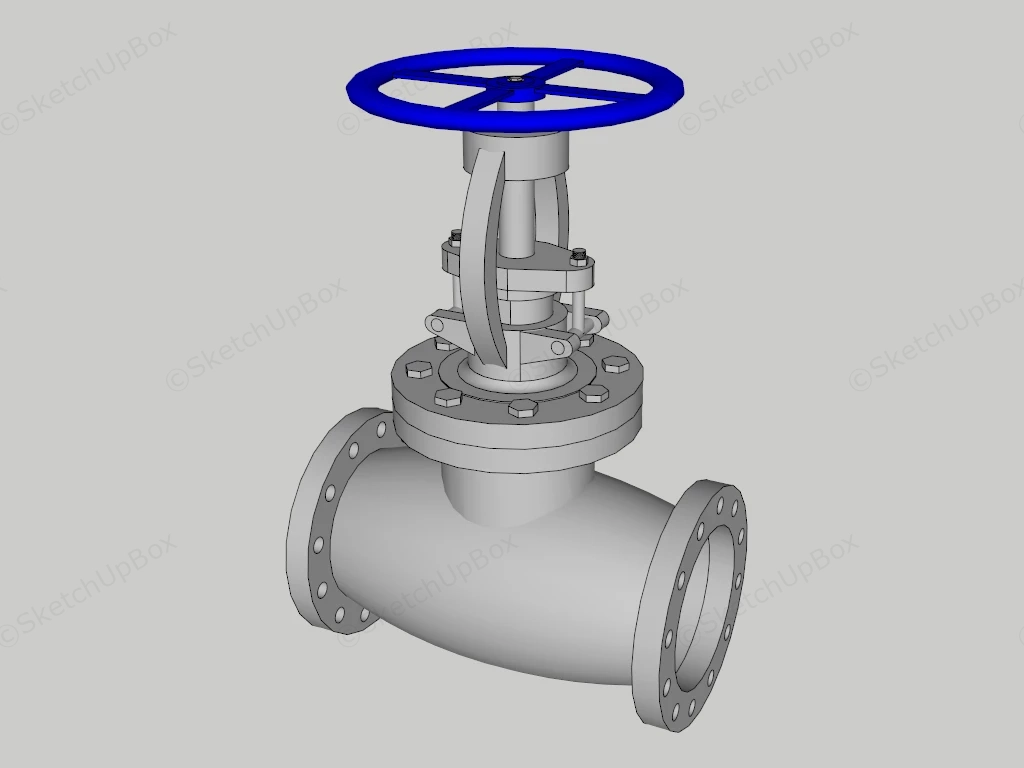

Industrial flanged globe valve SketchUp 3D model, a gate valve with a blue handwheel and flanged ends for pipe connections. Such valves are commonly used in industrial piping systems to control the flow of liquids or gases in pipelines.

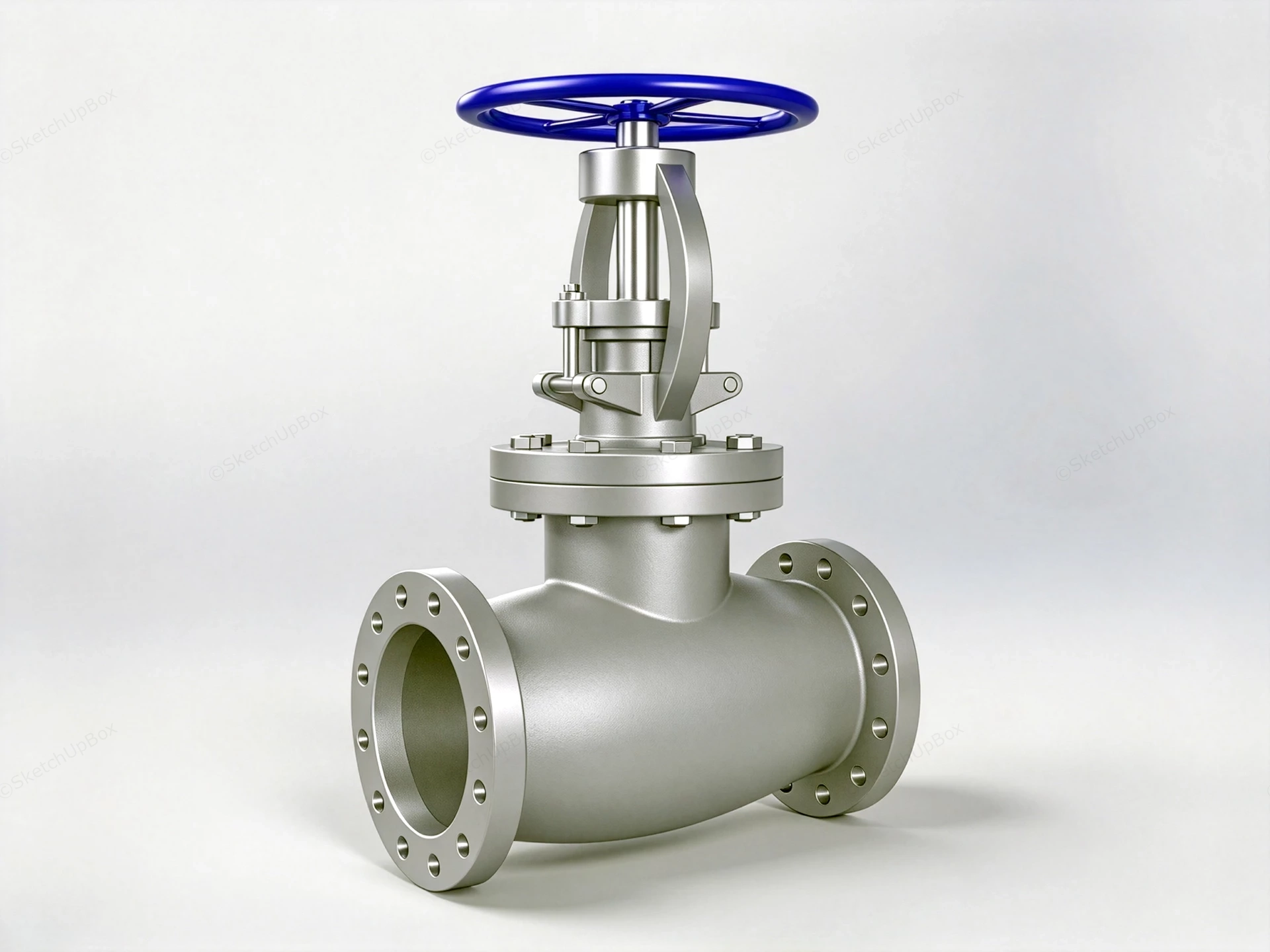

This detailed industrial piping 3D model features a heavy-duty flanged metal gate valve equipped with a blue manual control handwheel, rising stem yoke, bolted bonnet assembly, and dual flanged connection ends. Designed for mechanical engineering (MEP) schematics, oil and gas refinery visualization, chemical processing plant staging, water treatment facility masterplans, and industrial ArchViz projects, the asset delivers realistic metallic surface highlights with optimized geometric efficiency.
Included Components & Specifications
- Valve body & connection flanges: Precision-modeled cast steel valve housing featuring dual flanged end connections with 12 perimeter bolt holes, structural reinforcement ribs, and a heavy-duty bolted bonnet flange joint
- Stem & handwheel actuator: Outdoor industrial rising stem yoke assembly fitted with a top-mounted circular manual handwheel painted in safety blue, gland packing flange, and threaded actuator stem shaft
- Material & shader setup: Satin-finish metallic stainless steel body shaders paired with glossy blue enamel handwheel coating for realistic specular reflections
Rendering & Workflow Compatibility
The model contains only 4,058 polygons, making it ultra-lightweight and heavily optimized for scattering across extensive industrial piping networks, plant masterplans, and complex MEP assemblies without compromising viewport performance. Saved in SketchUp 8 (SU8) format, it provides complete backward compatibility across legacy and current SketchUp architectural production pipelines.
