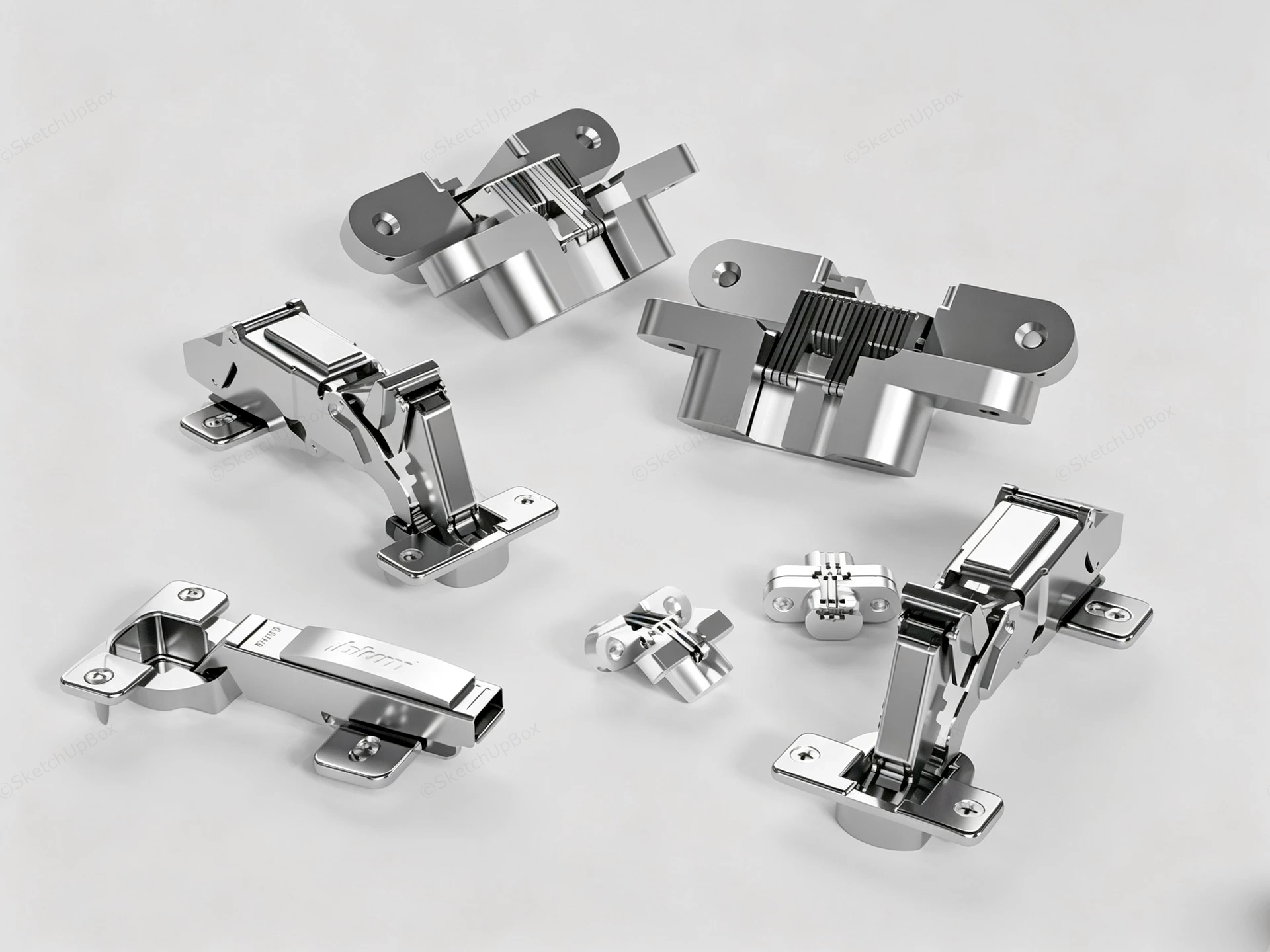

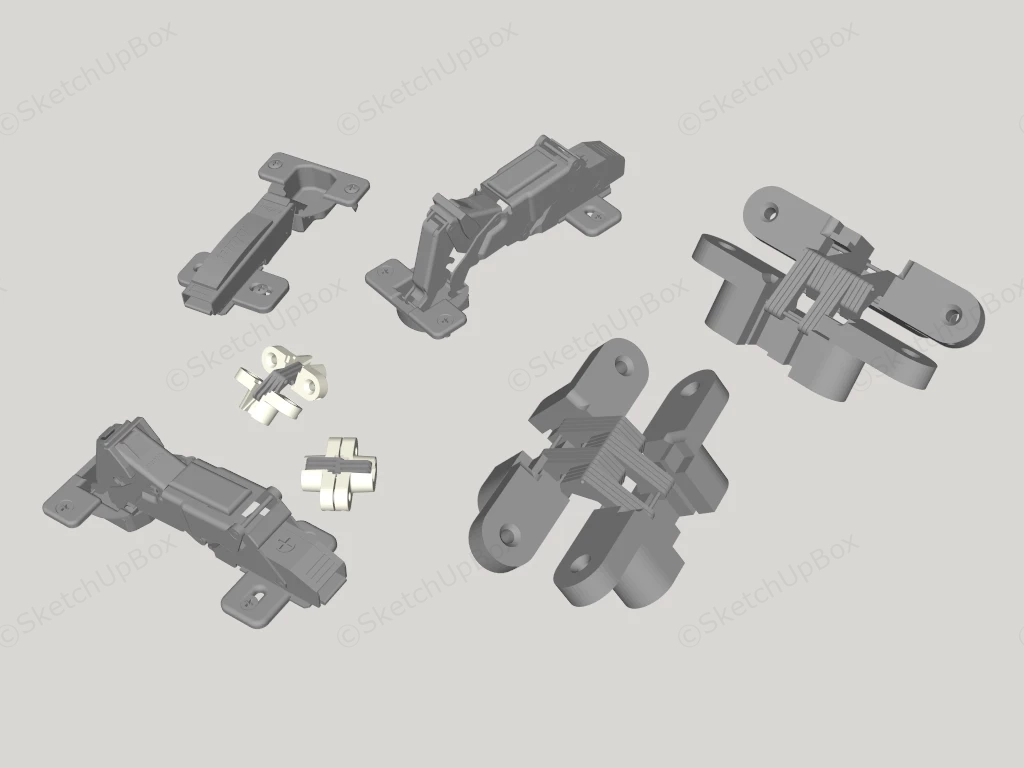

A collection of concealed cabinet and door hinge hardware SketchUp 3D model, including clip-on and frameless designs. These hinges are designed for concealed installation in kitchen and furniture doors, offering smooth operation and durability.
This 3D hardware collection features precision-modeled interior joinery components, including soft-close European cabinet cup hinges and multi-axis adjustable concealed door hinges. Built for architectural visualization, interior millwork callouts, and close-up FF&E detailing, these models bring technical accuracy to residential cabinetry and concealed door systems. The exact mechanical geometry ensures accurate specular highlights and realistic spatial clearances in high-resolution interior renders.
Included Components
- Main joinery hardware: European-style soft-close concealed cabinet hinges with mounting plates
- Architectural door hardware: Heavy-duty 3D adjustable concealed hinges for flush invisible doors
- Secondary hardware: Compact pivot hinge assemblies and integrated screw fastener detailing
Rendering & Workflow Compatibility
The model contains 115,242 polygons and comes pre-configured with Enscape (ENS) materials for immediate real-time rendering. Saved in SketchUp 8 (SU8) format, it maintains backward compatibility across all legacy and modern SketchUp pipeline workflows.
