Heavy-duty metal door hinges SketchUp 3D model. These hinges are commonly used in commercial and industrial settings for their durability and resistance to corrosion.
This 3D architectural hardware model set features precision-engineered brushed steel butt hinges with central pin ball bearings and rounded radius leaf corners. Designed for detailed architectural interior visualizations, custom door construction drawings, and close-up FF&E callouts, these components add mechanical accuracy to interior and exterior door assemblies. The precisely modeled bevels and countersunk geometry optimize realistic specular highlights and shadow patterns under direct studio lighting.
Included Components

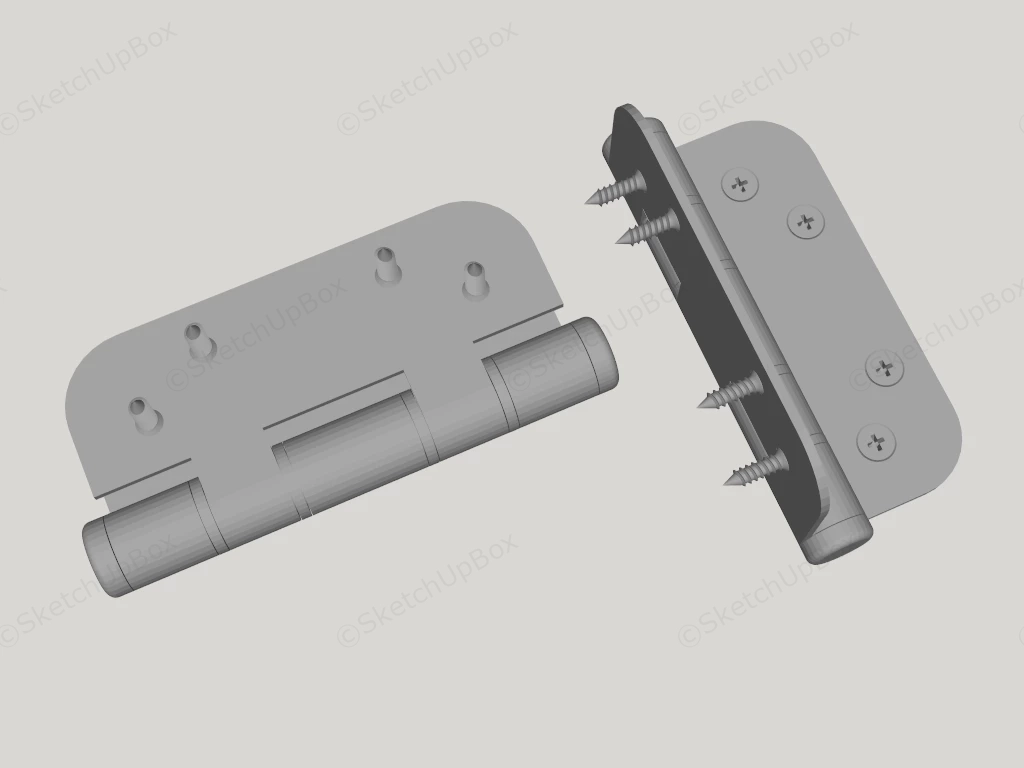

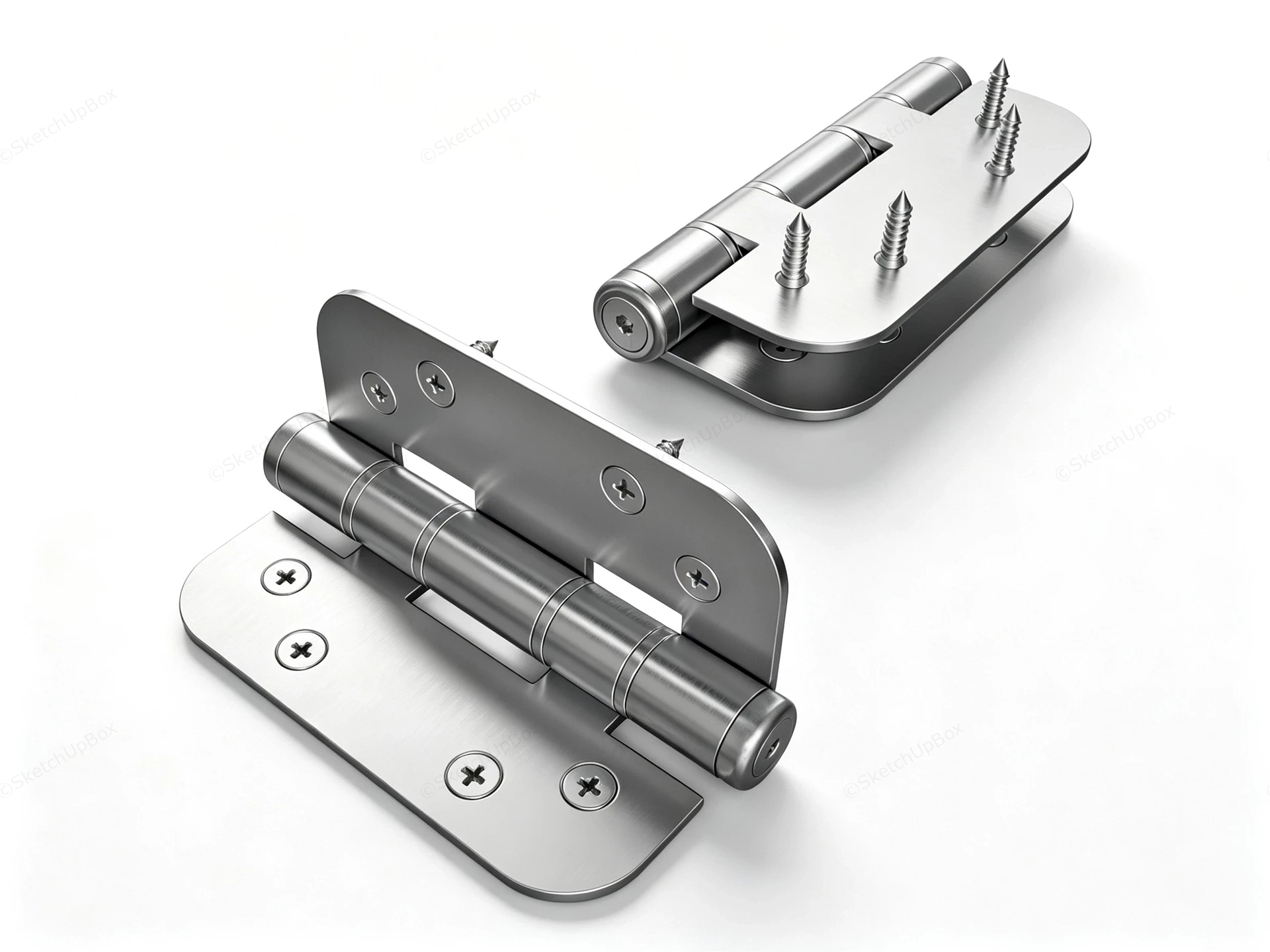

- Main hardware piece: Fully opened heavy-duty steel butt hinge with countersunk screw holes
- Secondary hardware piece: Partially folded hinge assembly showing barrel joint and knuckle detailing
- Fastener details: Threaded Phillips flat-head wood screws modeled in both inset and exploded positions
Rendering & Workflow Compatibility
The model contains 45,018 polygons and includes ready-to-render Enscape (ENS) metallic materials. Saved in SketchUp 8 (SU8) format, it offers full backward compatibility across legacy and current SketchUp architectural workflows.
